Sensor Mode 2 Circular Progress

A circular progress sensor (known as fan in the AOOSTAR-X software) masks a progress bar image for a certain angular range based on the corresponding sensor value. The masked image is alpha-blended with the panel image.

Sensor configuration fields:

mode: 2 (for fan)
direction: 1 = clockwise, 2 = counter-clockwise
label: label identifier, also used as sensor value data source identifier
x, y: position on the panel
width, height: size of the circular progress element (not yet used)
pic: circular progress image to overlay. Should match width, height
minAngle, maxAngle: range of the masked image
minValue, maxValue: clamp sensor value to this range
xz_x, xz_y

Example

The following configuration and graphics are taken from the 仪表盘_windows panel configuration in 有线网卡 windows驱动.rar.

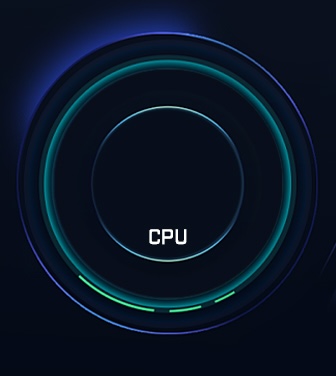

Example panel.json with a single "fan" indicator sensor and the following (partial) background image in img:

{
  "name": "Fan test panel",
  "img": "background.jpg",
  "sensor": [
    {
      "id": "29d9ef2d-30b4-459d-b2b0-43cb6d4d6b41",
      "itemName": "CPU usage",
      "mode": 2,
      "type": 1,
      "direction": 1,
      "label": "cpu_percent",
      "value": "47.7",
      "x": 168,
      "y": 184,
      "width": 237,
      "height": 237,
      "fontColor": "#ffffff",
      "fontSize": 14,
      "fontFamily": "default_font",
      "textAlign": "left",
      "minAngle": -160,
      "maxAngle": 30,
      "minValue": 0,
      "maxValue": 80,
      "xz_x": 0,
      "xz_y": 0,
      "pic": "progress_circle.png"
    }
  ]
}

Progress image "pic": "progress_circle.png":

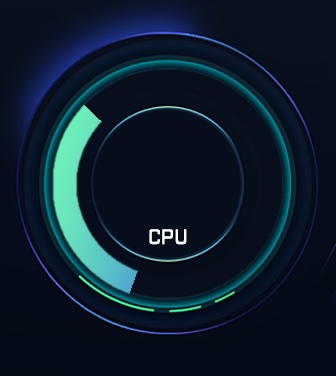

The following graphic is rendered for progress example above:

Known Issues

Fan sensor rendering has been reverse engineered from the AOOSTAR-X app. Not all options are supported.

Work in progress, not yet fully tested
direction: 2 doesn't seem to work
widht, height should be considered and auto-resized as for mode 4
